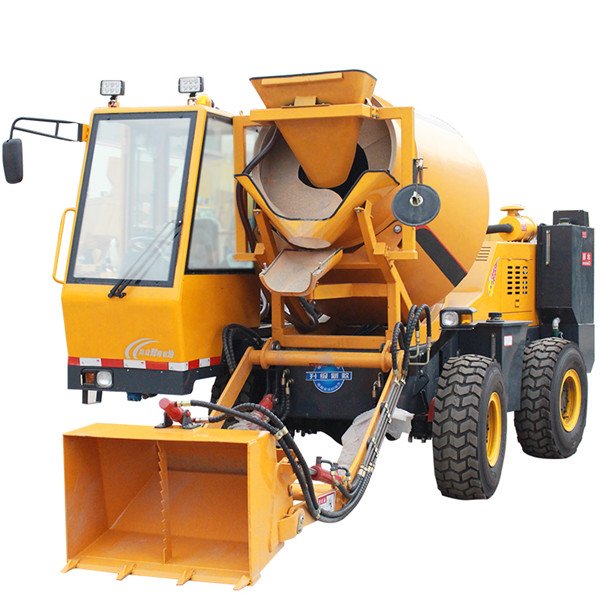

Self loading Mobile Concrete mixer truck

The automatic loading and unloading mobile concrete mixer truck is a combination of the functions of a concrete transport truck and a concrete mixing station. It integrates concrete loading, metering, mixing and discharging, and can realize concrete transportation and on-site concrete construction operations. equipment.

Additional information

Engine

Yunnei/Yuchai/ Cummins-16L

Rotated Power

78KW (75HP)

Hopper volume

270L

Mixing volume

1.6 cbm

Geometrical volume

2.9 cbm

Concrete output

1.6 cbm/batch, 6.4-8 cbm/hour

Loading capacity

3840kg

Water tank

2*260L

Fuel tank

100L

Dimension

5650*2210*2580mm

Weight

5500kg

Product Details

The self loading mixer truck comprises a mixing body, and the body is equipped with a mixing drum. The drum is driven to rotate by the hydraulic mechanism.

The drum is inclined, with an opening at the highest end. At the opening there is a feeding port fixed to the mixer truck. The drum is equipped with stirring screws.

The two sides of the mixing drum are symmetrically provided with a boom. One end of the boom is hinged on the mixing body, and the body is further provided with a lifting cylinder to lift and lower the booms.

A hopper is fixed between the two booms, and is provided with a door at the end near the feeding port. A discharging cylinder for controlling opening and closing of the door is provided on the hopper.

The fully automatic loading mixer has a simple structure and is easy to use. It can realize the loading, mixing and unloading of concrete without excessive staff operation, which is economical and practical.



Main feature

1) China’s top brand Yuchai diesel engine is used as standard power,
Cummins engine is optional
2) No need to turn seats when driving in both directions

3) The bucket can be flipped in the high position

4) Removable cabin windows

5) Full load 40% gradeability

6) High drum speed

7) Closed-circuit hydraulic slewing system

8) Spacious cab with luxurious seats, air conditioner and fire extinguisher
