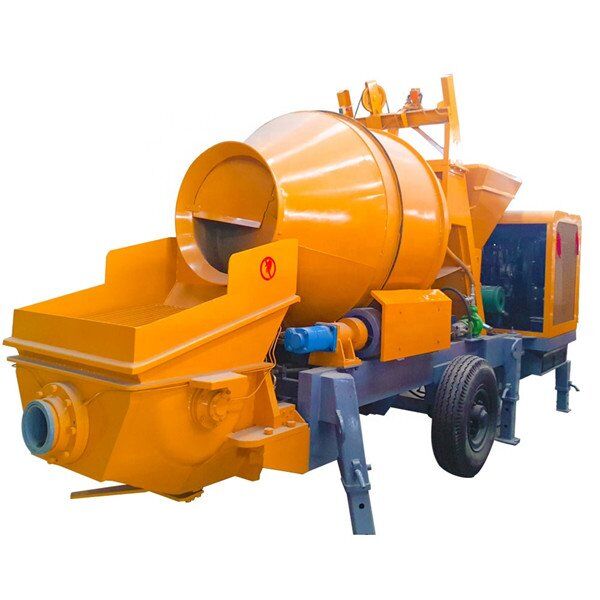

Concrete mixer pump is a type of fully automated construction operating system machine, which set feeding, mixing and high pressure pump as one of the concrete mixer pump. About mixing pump, easy operation , stable performance, easy to move.
| Model | JBT-40 |
|---|---|
| Concrete output | 40m3/h |
| Horizontal distance | 500m |
| Vertical distance | 150 |
| Aggregate size | 40mm |
| Power | 84KW |
| Dimension | 5500*1850*2650 |
| Weight | 5600Kg |
| Items
项目内容 |
Units
单位 |
Parameters
参数 |
||
| JBS40-10-84R | ||||
| Whole performance of machine | 整机性能 | Max. theo. concrete output (L./H.)
最大理论混凝土输送量(低压/高压) |
m3/h | 40/26 |
| Max.concrete pumping pressure (H. /L.)
最大泵送混凝土压力(高压/低压) |
MPa | 10/7.6 | ||
| Distribution valve type
分配阀形式 |
S管阀
S Valve |
|||
| Concrete cylinder diameter×stroke
混凝土输送缸缸径×行程 |
mm | Ф1800×1300 | ||
| Hopper capacity×feeding height
料斗容积×上料高度 |
L×mm | 400×1100 | ||
| Outlet diameter
出料口直径 |
mm | Ф150 | ||
| Power system | 动力系统 | Diesel engine model
柴油机型号 |
潍坊裕兴/玉柴 | |
| Electrical engineering power
额定功率 |
kW | 84/85 | ||
| Rotate speed
额定转速 |
r/min | 2100 | ||
| Hydraulic system | 液压系统 | Circuit type
液压油路形式 |
Open circuit
开式回路 |
|
| Pumping system pressure
泵送系统油压 |
MPa | 31.5 | ||
| Mixing system pressure
搅拌系统油压 |
MPa | 6-8 | ||
| Capacity of oil tank
液压油箱容积 |
L | 370 | ||
| The biggest transportation is away from vertically (/Level)
最大输送距离 垂直/水平 |
m | 120/500 | ||
| Other parameters | 其它参数 | Max. aggregate diameter
允许最大骨料粒径 |
mm | Scree碎石:30 40 |
| Inside diameter of delivering pipe
混凝土输送管内径 |
mm | Ф125 | ||
| Dimensions：length×width×height
外形尺寸：长×宽×高 |
mm | 5800x2200x2600 | ||
| Total weight 总质量 | kg | 5000 | ||
