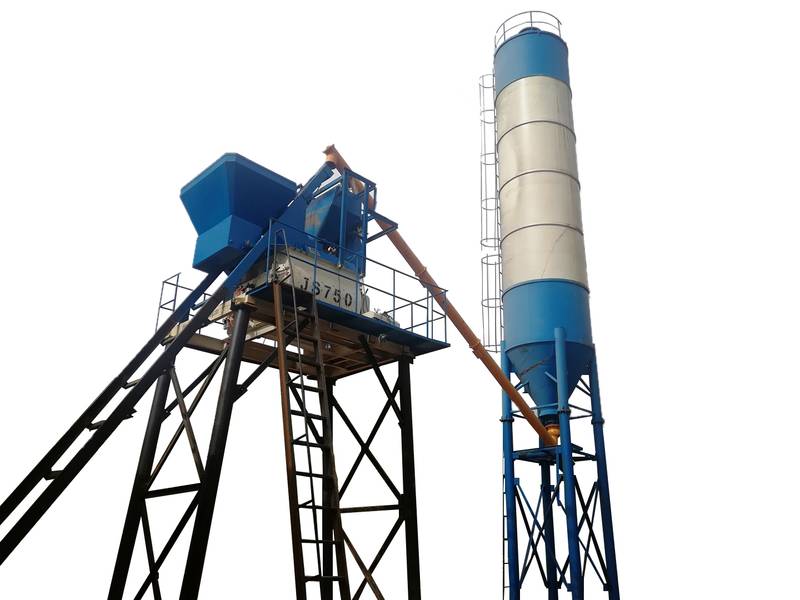

Concrete batch plant is a building material manufacturing equipment composed of five major components: mixing host, material weighing system, material conveying system, material storage system, control system and other auxiliary facilities.
| Model | HZS35 |
|---|---|
| Capacity | 35m3/h |
| Power | 76Kw |
| Mixer Model | JS750 |
| Batching machine Model | PLD1200 |
| Discharging Height | 2m, 3.8m |
| Cycle Time | 75s |
| Cement Weighing accuracy | ±1% |
| Water Weighing accuracy | ±1% |
| Additive Weighing accuracy | ±2 |
The concrete Batch plant is a building material manufacturing equipment composed of a mixing host, a material weighing system, a material conveying system, a material storage system, a control system and other ancillary facilities.
The main principle of its work is to use cement as the cementing material, mixing sand, lime, cinder and other raw materials, and finally making it into concrete, which is put into construction and production as a wall material
Main Features:
1) Adopts module structure,it is so easy to load/unload goods when shipment,also install more quickly.
2) Choosing spiral mixing system is to ensure high efficiency for concrete mixer,it can also extend mixer’s working life by adopting high-rigidity and wearable case alloy steel mixing blades.
3) Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
4) Aggregate batching machine adopts electric weighing system with sensor,its aggregate weighing accuracy is less than 2%,flexible combination of hoppers can be easy for your reasonable choice.
5) Automatic PC+PLC control system can ensure the flexible control and strong reliability
6) Human-machine intelligent control interface can complete intelligent operation and control smoothly.
7) Based on accurate weighing,it can produce high-quality concrete and meet the clients’ requests.
8) Compact structure,strong shaft-end sealing and high efficiency for production capacity,flexible and easy to install and operate.
| 35m3 Concrete Batch Plant | Unit | Parameter |
| Maximum productivity | m3/h | 35 |
| Host nominal capacity | m3 | 0.75 |
| Aggregate scale maximum weighing value | kg | 1800 |
| Cement scale maximum weighing value | kg | 500 |
| Water scale maximum weighing value | kg | 200 |
| Admixture maximum weighing value | kg | 30 |
| Mixing power (JS500) | kW | 30 |
| Increase power | kW | 7.5 |
| Total power | kW | 80 |
| Machine quality | T | 16.5 |
| Discharge height | m | 2.0-4.2 |
| Aggregate measurement accuracy | % | ±2 |
| Water metering accuracy | % | ±1 |
| Cement measurement accuracy | % | ±1 |
| Admixture metering accuracy | % | ±1 |
| Automatic cycle | S | 72 |
