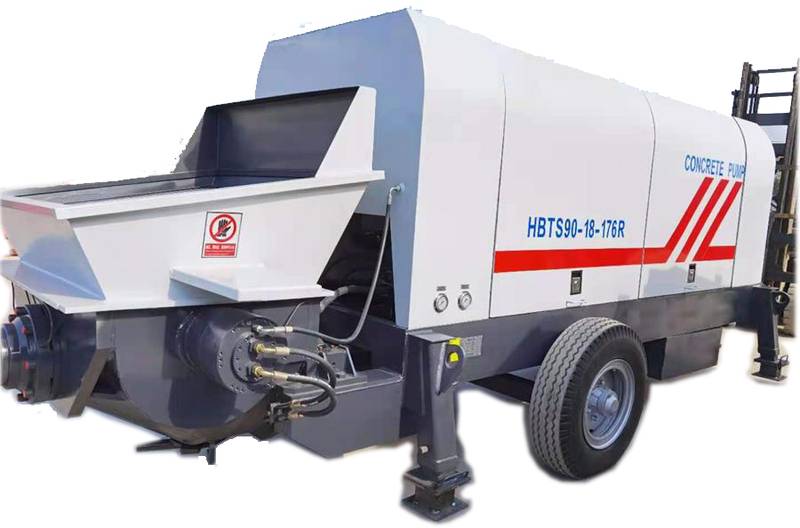

HBTS90 Trailer Mounted Diesel Concrete Pump

Trailer Mounted HBTS-90 Diesel Concrete Pump is a machine which Use Deutz diesel engine to provide pressure to continuously transport concrete along the pipeline and is composed of a pump body and a delivery pipe, which can deliver concrete to 200m High.

Additional information

Capacity

95m3/h;55m3/h

Vertical distance

200m

Horizontal distance

1200m

Engine

Weichai Deutz

Power

176KW/240HP

Rotating Speed

2200 r/min

Mixing system pressure

8 MPa

Pumping system pressure

32 MPa

Aggregate size

<50mm

Dimension

6000×2200×2250mm

Weight

6500KG

Product Details

The main components:

HBTS-90 diesel pump

HBTS-90 Diesel Pump Parameters:

Items

项目内容

Units

单位

Parameters

参数

       HBTS90-18-176R
Whole performance of machine 整机性能 Max. theo. concrete output (L./H.)

最大理论混凝土输送量(低压/高压)

m3/h 95/55
Max.concrete pumping pressure (H. /L.)

最大泵送混凝土压力(高压/低压)

MPa 18/9.3
Distribution valve type

分配阀形式

S管阀

S Valve

行走方式 履带钢轨
Concrete cylinder diameter×stroke

混凝土输送缸缸径×行程

mm Ф200×1800
Hopper capacity×feeding height

料斗容积×上料高度

L×mm 800×1400
Outlet diameter

出料口直径

mm Ф180
Power system 动力系统 Diesel engine model

柴油机型号

潍柴道依茨
Electrical engineering power

额定功率

kW 176
Rotate speed

额定转速

r/min 2200
Hydraulic system 液压系统 Circuit type

液压油路形式

Open circuit

开式回路

Pumping system pressure

泵送系统油压

MPa 32
Mixing system pressure

搅拌系统油压

MPa 8
Capacity of oil tank

液压油箱容积

L 580
The biggest transportation is away from vertically (/Level)

最大输送距离  垂直/水平

m            360/1200
Other parameters    其它参数 Max. aggregate diameter

允许最大骨料粒径

mm Slick scree卵石: 50、

Scree碎石: 40

Inside diameter of delivering pipe

混凝土输送管内径

mm Ф125
Dimensions:length×width×height

外形尺寸:长×宽×高

mm 6000×2200×2250
Total weight 总质量 kg 6500

All accessories:



Pakage and Shipping:

Note: Since the size of the HBTS-90 diesel pump is 6000×2200×2250mm, it can only be loaded directly in a 20-foot container.
