The double shaft Concrete mixer has the dual advantages of operating independently, or forming a simple concrete mixing station with the PLD series aggregate batching machine. It can also be used as the host of a concrete mixing plant, and it is a widely used high-efficiency mixer.
| Model | JS750 |
|---|---|
| Discharging Volume | 750l |
| Feeding Volume | 1200l |
| Product Capacity | 35m3/h |
| Aggregate size | ≦60 |
| Mixing Motor | 30KW |
| Lifting Motor | 7.5KW |
| Discharging Height | 2m/3.8m |
| Dimension | 3250mm * 2300mm * 2790mm |

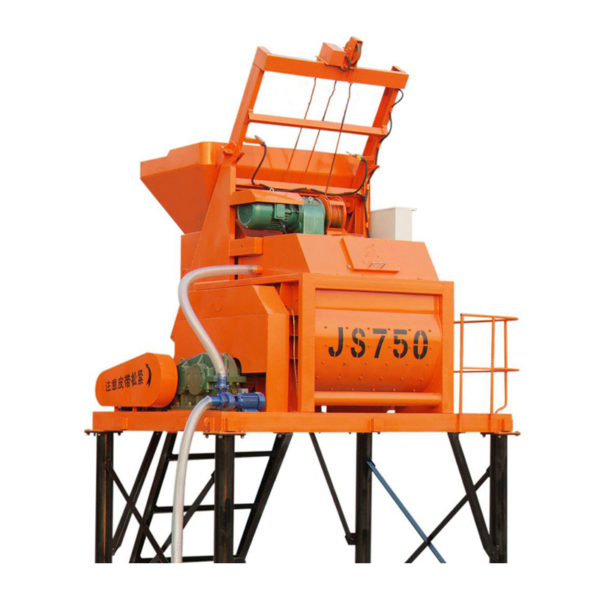

JS750 concrete mixer is a double-shaft forced mixer.
The mixer has the dual advantages of operating independently, or forming a simple concrete mixing station with the PLD series aggregate batching machine. It can also be used as the host of a concrete mixing plant, and it is a widely used high-efficiency mixer.
Performance advantages:
1.reasonable structural design
2.novel layout
3.convenient maintenance.
4.It can be used with dump trucks, dump trucks or mixer trucks.
5.It can also be customized according to the special requirements of customers.
| Name Parameter | JS750 | |
| Discharge capacity (L) | 750 | |
| Feed capacity (L) | 1200 | |
| Theoretical productivity (m3/h) | ≦35 | |
| Maximum aggregate value (mm) | ≦40/60 | |
| Working cycle time (S) | 72 | |
| Machine quality (Kg) | 5500 | |
| Dimensions Length * width * height | Transportation status | 3000*2300*2600 mm |
| Working status | 3000*5400*5300mm | |
| Mixing blade
| Rotating speed | 30r/min |
| Quantity | 2*7 | |
| Stirring motor | model | Y500L-4 |
| power | 30Kw | |
| Winding motor | model | YEZ132M-4 |
| power | 7.5 | |
| Pump motor | model | BL12-16-1.5 |
| power | 1.5Kw | |
